Manganese Ore Mining Process: Complete Extraction and Beneficiation Technology
Date: 2026-06-29 Categories: New Energy Minerals Views: 152
Driven by the booming new energy industry, including lithium iron manganese phosphate batteries, ternary lithium batteries, and energy storage systems, manganese ore has become a strategic mineral resource globally. Most manganese ore in China features low grade, high mud content, fine embedded particles, and excessive impurities. To improve the grade and recovery rate of manganese concentrate, standardized and scientific mining, crushing, washing,g and purification processes are essential. This article comprehensively introduces the modern and complete production process of manganese ore mining and beneficiation, as well as professional equipment configuration solutions.

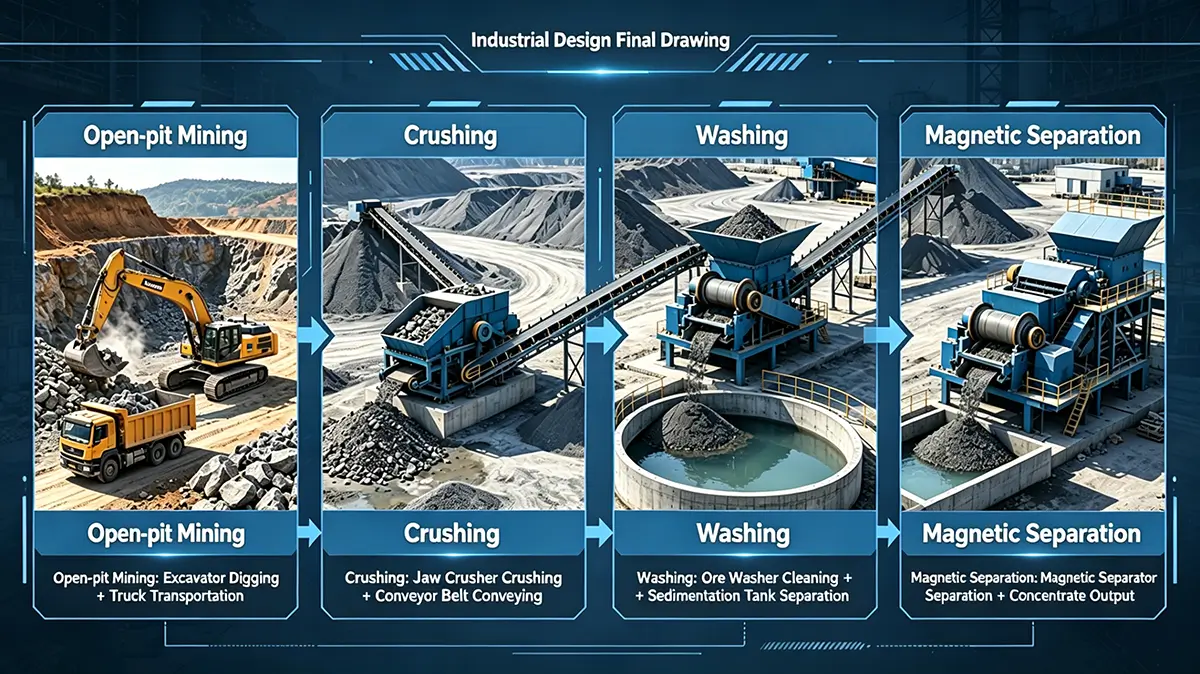

1. Main Manganese Ore Mining Methods
Open-pit mining is the dominant method for mainstream manganese ore projects at home and overseas, which applies to shallow weathered manganese oxide ore and carbonate manganese ore. It boasts outstanding advantages such as fast production launch, high safety, and low operating cost.
The standard open-pit mining procedure includes overburden stripping, drilling and blasting, shovel loading and transportation, raw ore stockpiling, and final delivery to the crushing production line.
Underground mining is adopted for deep-buried high-grade carbonate manganese ore, mainly distributed in Yunnan, Guizhou, and Hunan mining areas. Equipped with underground crushing and continuous conveying systems, this process features rigorous operation standards and a high degree of automation.
2. Three-stage Closed-circuit Crushing Process (Core Section)
Manganese ore is medium-hard and highly abrasive. Large raw ore cannot be directly sorted, so a standardized three-stage crushing and closed-circuit screening process is required. This core procedure determines the overall efficiency of manganese beneficiation and is the key application scenario for cone crushers.
2.1 Primary Crushing: Jaw Crusher
The vibrating feeder evenly sends bulk raw ore (about 700mm) to the jaw crusher, which crushes the ore to 80-120mm. This primary dissociation ensures stable feeding for the subsequent medium and fine crushing equipment.
2.2 Medium Crushing: Single-cylinder Hydraulic Cone Crusher
Tailored for manganese ore’s working conditions of high hardness, occasional iron passing,g and mud blockage, the single-cylinder hydraulic cone crusher features sensitive iron passing protection, a reasonable crushing cavity, and simple maintenance. It is the preferred equipment for small and medium-sized manganese ore production lines with uniform discharging and a low failure rate.

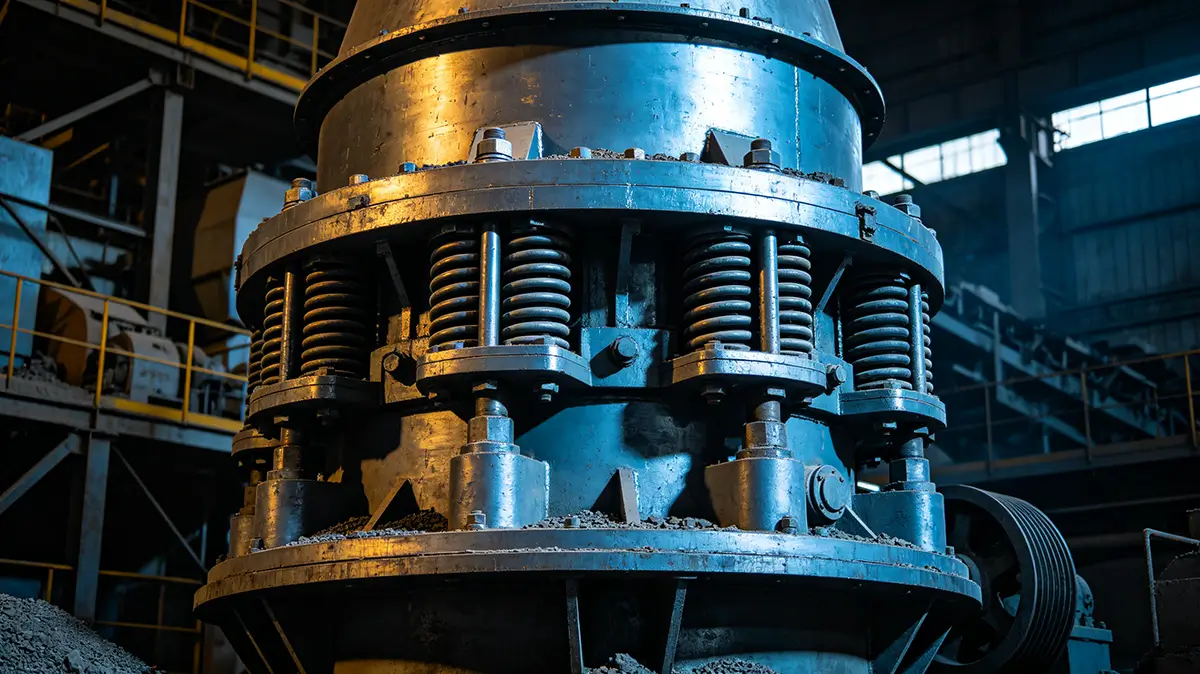

2.3 Fine Crushing: Multi-cylinder Hydraulic Cone Crusher
The multi-cylinder hydraulic cone crusher is standard equipment for large-scale new energy manganese ore mines and high-capacity beneficiation plants. Adopting the laminated crushing principle, it produces regular-shaped fine particles with a fine material ratio up to standard. It can crush ore to 0-12mm, fully dissociating manganese minerals from gangue minerals and greatly reducing subsequent grinding costs.
2.4 Closed-circuit Screening Cycle
The crushed materials are classified by a vibrating screen. Qualified fine particles are transported to the ore washing process, while oversize coarse materials are returned to the cone crusher for secondary crushing. The closed-circuit cycle ensures stable particle size and continuous high production capacity.
3. Manganese Ore Washing and Desliming Process
Primary manganese ore usually contains a large amount of surface mud, which easily causes equipment blockage and reduces sorting accuracy. Modern production lines are equipped with drum washers and trough scrubbers for high-pressure water desliming. This process effectively improves the recovery rate of subsequent gravity separation and magnetic separation, protects the wearable parts of crushing equipment, and reduces operation and maintenance costs.
4. Mainstream Manganese Ore Beneficiation and Purification Processes
According to the different characteristics of manganese oxide ore, manganese carbonate ore, and high-phosphorus manganese ore, four mature sorting technologies are widely applied in modern manganese ore processing:
4.1 Gravity Separation
Suitable for coarse-grained manganese oxide ore, gravity separation sorts minerals by density difference. With simple equipment and no chemical agents required, it features low cost and is mainly used for pre-discarding waste rock to improve ore grade.
4.2 High-gradient Magnetic Separation (Domestic Mainstream)
Manganese minerals are weakly magnetic. High-gradient magnetic separators can efficiently separate non-magnetic gangue such as quartz and feldspar. Divided into dry pre-separation and wet deep purification, this technology is the most widely used purification method for new energy manganese ore beneficiation plants.
4.3 Gravity-magnetic Combined Separation
This combined process adopts gravity separation for coarse-grained ore and magnetic separation for fine-grained pulp. It balances recovery rate and concentrate grade, perfectly adapting to the upgrading of most low-grade and complex manganese ore mines.
4.4 Flotation Impurity Removal
For high-phosphorus, high-iron,n and high-sulfur manganese carbonate ore, flotation technology is used to remove harmful impurities, producing high-purity manganese concentrate that meets the production standards of new energy power batteries.
5. Grinding, Dehydration, and Finishing Processes

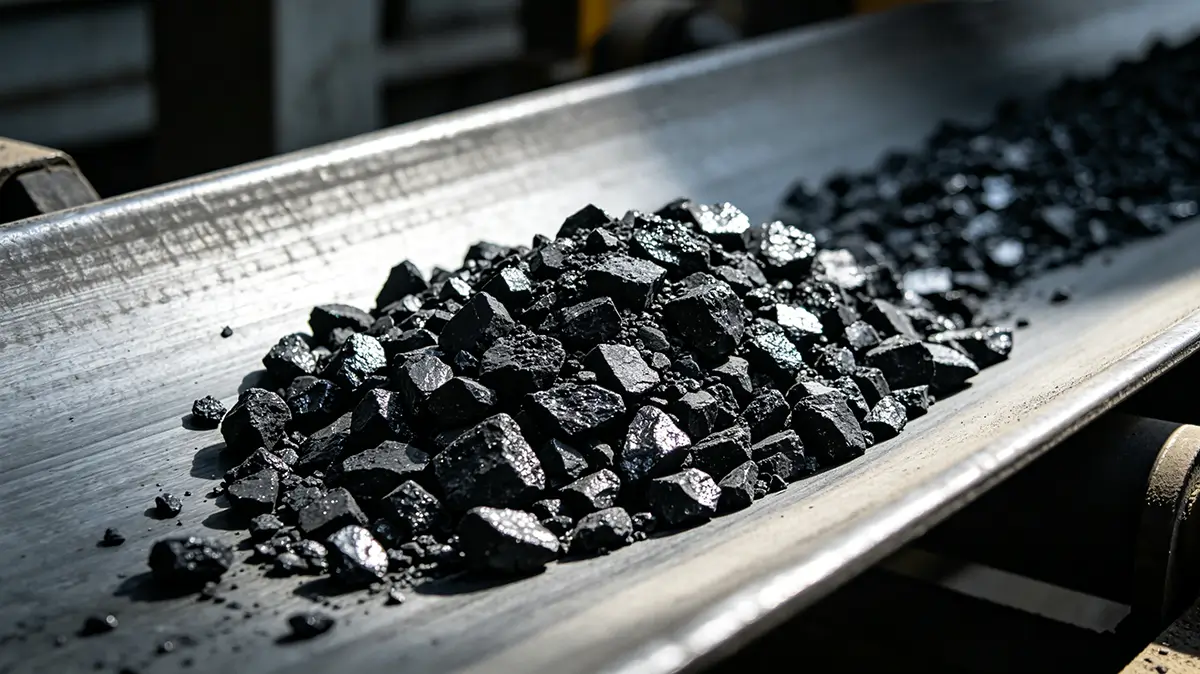

Qualified graded materials are sent to ball mills and rod mills for fine grinding and mineral dissociation, then classified by hydrocyclones before entering the sorting system. The separated manganese concentrate pulp is concentrated and dewatered by plate and frame filter presses, obtaining dry manganese concentrate with stable grade and low moisture content, which can be directly supplied to new energy material manufacturing, manganese alloy smelting, and chemical industries.
Supporting tailings dry stacking systems realizes full recycling of water resources, fully complying with green mine environmental protection standards.
6. Manganese Ore Crushing Equipment Selection Guide
Small and medium-sized manganese ore production lines. The single-cylinder hydraulic cone crusher is preferred for its high cost-performance, easy maintenance, and anti-blocking performance.
Large-scale new energy manganese ore projects: The multi-cylinder hydraulic cone crusher is the best choice, featuring large capacity, high automation, regular finished particle shape, and stable long-term operation.
Mobile mining projects: Mobile cone crushing stations are configurable, with fast transition and no complex civil construction, suitable for multi-site flexible operation.
7. Development Trend of Manganese Ore Processing Industry
Boosted by the new energy industrial chain, efficient utilization of low-grade manganese ore, intelligent crushing, green low-carbon beneficiation,n and tailings comprehensive utilization have become the mainstream development directions. Intelligent crushing production lines centered on hydraulic cone crushers have become the standard configuration for new and renovated manganese ore projects.
Conclusion
Every link of manganese ore mining and beneficiation is closely connected, and the crushing section directly determines the production capacity, recovery rate, te and overall operating cost of the entire production line. Reasonably configuring jaw crushers, single-cylinder/multi-cylinder cone crushers, and washing and sorting equipment according to ore hardness, mud content,t and production scale can effectively improve manganese ore resource utilization efficiency and support the stable supply of manganese raw materials for the global new energy industry.
