A mobile sand making station is a mobile sand making equipment that integrates crushing, screening, and conveying. With a cone crusher as its core, it is specifically designed for the fine crushing and shaping of medium-to-high hardness materials and the production of high-quality sand and gravel aggregates. Its greatest advantage lies in its high mobility; it can be quickly relocated and directly deployed to construction sites or mining operations, achieving "on-site sand making and on-site use," significantly reducing transportation costs and improving resource utilization.

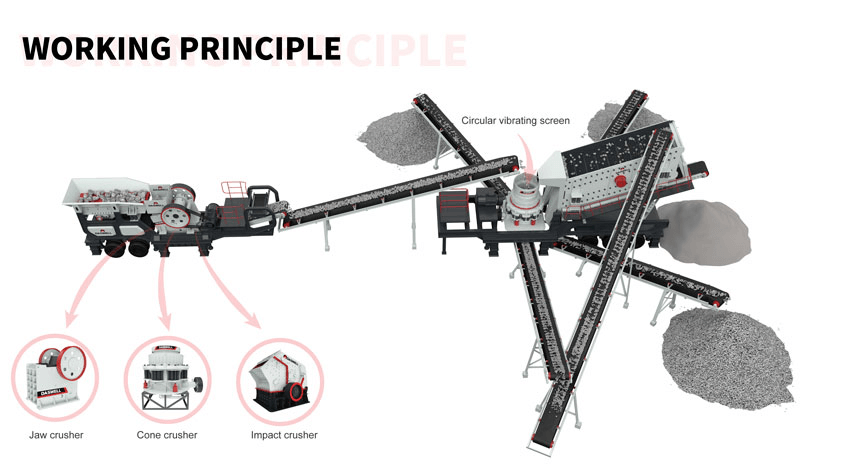

Working Principle
The main crusher of a mobile crushing plant can be a jaw crusher, impact crusher, or cone crusher. Material is evenly fed to the crusher by a feeder. After initial crushing by the crusher, the material is circulated and crushed through a circular vibrating screen, forming a closed-loop system. Material meeting the particle size requirements is output by a belt conveyor, achieving the production objective.
The mobile crushing plant can also have its circular vibrating screen disassembled according to actual production needs for direct initial crushing of materials, and then used in conjunction with other crushing equipment for specific operations, offering convenient and flexible operation.
1. Feeding: Large bulk materials are loaded into the vibrating feeder.
2. Primary Crushing: A mobile jaw crusher crushes large materials.
3. Secondary Crushing: The crushed material is sent to an impact crusher or cone crusher for intermediate and fine crushing.
4. Screening: A vibrating screen sorts the material according to particle size. Qualified material is sent to a conveyor, while unqualified material is returned for further crushing, forming a closed-loop system.
5. Discharge: Qualified finished aggregate is discharged from the belt conveyor.
Product Structure
A typical mobile sand making plant consists of the following modules:
- Core Crushing Unit: Equipped with a high-efficiency hydraulic or multi-cylinder cone crusher, employing the principle of layered crushing to ensure excellent particle shape and low needle-like and flaky content in the output.
- Screening System: Equipped with a multi-layer vibrating screen to achieve closed-loop circulation, returning unqualified materials for re-crushing.
- Conveying System: Multiple belt conveyors complete material transfer and stacking;
- Power and Control: Powered by a diesel generator set or external power supply, with a PLC intelligent control system enabling one-button start, remote monitoring, and fault diagnosis.
Product Advantages
- Mobility: Easily movable to different construction sites for maximum flexibility.
- Efficiency: Powerful crushers and screening machines are designed for high output.
- Cost-effective: Eliminates the need to transport raw materials, reducing operating costs.
- Durability: Robust construction withstands harsh working environments.
- Versatility: Suitable for a wide range of crushing processes, from basic to advanced.
