Vertical shaft impact crushers are commonly used in crushing and sand making production lines, and are widely applied in crushing production lines for construction sand, stone, and various metallurgical slags. They are also widely used in secondary and tertiary crushing production lines in the mineral processing, coal, building materials, chemical, refractory materials, metallurgy, cement, glass, ceramics, and power industries.
Working Principle

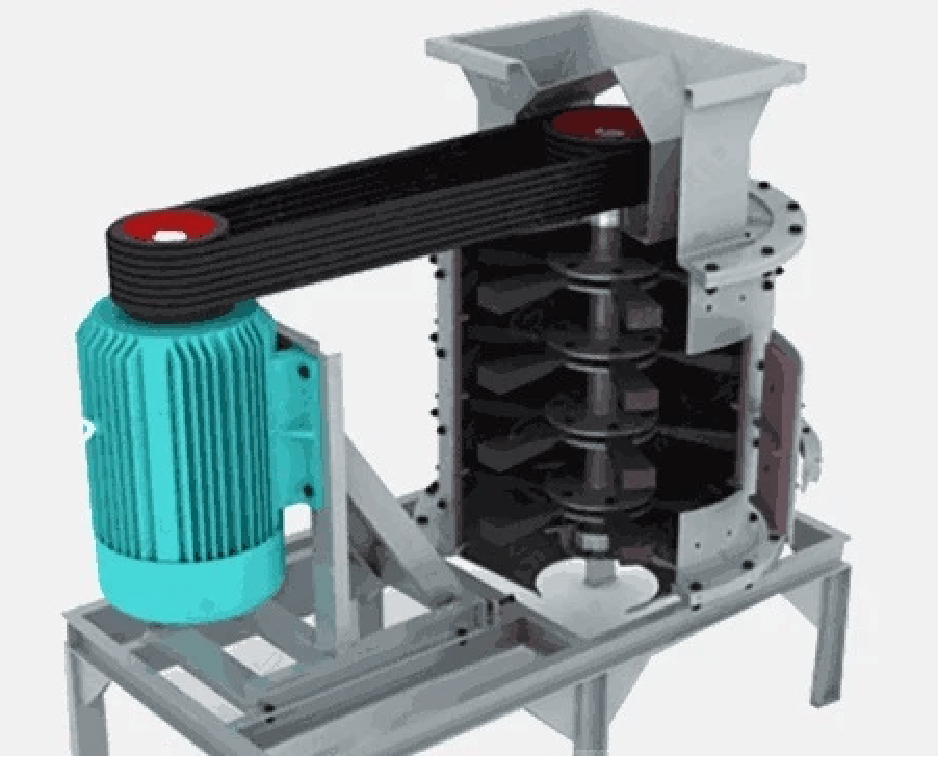

Stone material falls vertically into the vertical shaft impact crusher from the top, landing on the stone-throwing plate. Under centrifugal force, the material is thrown against the inner wall of the cylinder and collides violently with the reaction plate installed on the inner wall. The violent impact causes the material to break or crack. After entering the conical rotor cavity, the material is further crushed during its descent by impact and compression. The material is further crushed into fine particles, and qualified finished products are discharged from the outlet.
Product Advantages

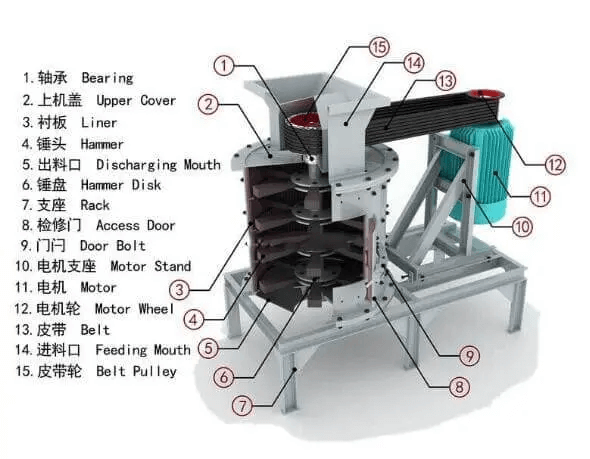

The vertical shaft impact crusher, also known as a vertical shaft sand making machine, consists of a transmission device, bearings, upper cover, liner, hammers, hammer plates, main shaft, belt, feed port, discharge port, support, motor, inspection door, cylinder, upper cover, base, etc. It has a simple and reasonable internal structure, low operating cost, and uses the stone-to-stone principle to reduce wear.
Technical Parameters
- Small footprint: The vertical compound crusher adopts a vertical structure, which requires less space compared to other crushing equipment, making it more suitable for small construction sites.
- Low energy consumption: This equipment uses advanced power configuration and crushing technology, resulting in lower energy consumption and greater economy compared to other crushing equipment.
- Low noise: The vertical compound crusher uses precision manufacturing processes and sound-absorbing materials, which can significantly reduce equipment noise and improve the comfort of the working environment.
- Uniform particle size: This equipment uses multi-stage crushing and multi-stage screening technology to obtain finished materials with a relatively uniform particle size distribution.
- Wide range of applications: The vertical compound crusher is widely used in material crushing and shaping in industries such as mining, metallurgy, construction, chemicals, and cement.
