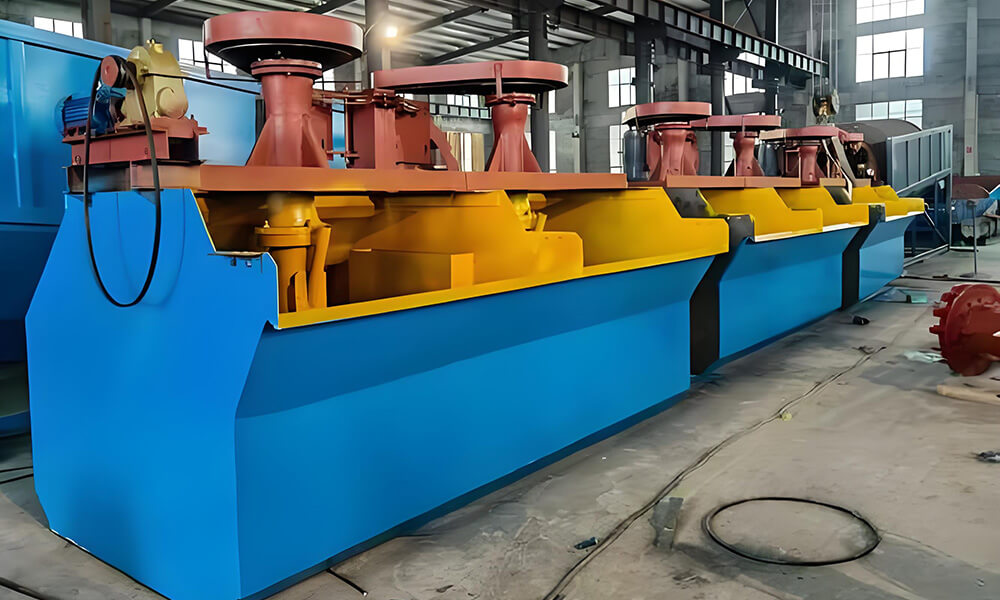

What Are Some Common Malfunctions or Problems With Flotation Equipment?

Common faults or problems that may occur during the operation of flotation equipment can be categorized into mechanical faults, process faults, electrical and control faults, and other issues, as detailed below:

I. Mechanical Faults

Impeller Wear or Blockage

Symptoms: Reduced aeration, insufficient stirring, decreased flotation performance.

Causes: Impeller wear due to prolonged operation or blockage by debris in the slurry.

Solutions: Shut down the equipment, check the impeller and stator for wear, remove any blockages, replace worn parts, and regularly remove debris from the slurry.

Bearing Overheating or Damage

Symptoms: Abnormal equipment vibration, increased noise, excessively high bearing temperature.

Causes: Insufficient or contaminated grease, misaligned or improperly installed bearings.

Solutions: Replenish or replace grease, correct bearing installation position; if the bearing is severely damaged, replace it.

Storage Tank Leakage

Symptoms: Slurry leakage and unstable liquid level.

Causes: Damaged welds, worn rubber lining, or loose bolts.

Troubleshooting: Repair welds or replace the rubber liner, tighten bolts.

Scraper Mechanism Failure

Symptoms: Scraper shaft rotates slowly, shaft breaks, motor overheating, motor deceleration, reducer oil leakage.

Causes: Damaged bearings and couplings in the scraper mechanism, or bent or deformed scraper shaft.

Troubleshooting: Inspect and replace damaged parts, straighten the scraper shaft; if the scraper shaft is broken, replace it with a new one, avoid welding and continued use.

II. Process Failures

Insufficient Ventilation

Symptoms: Reduced bubble count and decreased mineral recovery rate.

Causes: Insufficient blower pressure, blocked air ducts, or incorrectly opened air regulating valve.

Solutions: Clean ventilation ducts, adjust blower pressure, and ensure proper valve opening.

Abnormal Foam (Too Much or Too Little)

Symptoms: Excessively thick foam layer or difficulty in foam formation.

Causes: Improper reagent dosage (too much or too little frother or collector), unsuitable slurry pH or concentration.

Solutions: Adjust reagent dosage, control slurry pH within a reasonable range (e.g., 6-9), and optimize slurry concentration.

Unstable Slurry Level

Symptoms: Significant fluctuations in slurry level, affecting separation efficiency.

Causes: Uneven ore feed rate, blocked or malfunctioning discharge valve.

Solutions: Stabilize ore feed rate, clean or replace valves.

III. Electrical and Control Faults

Motor Overload or Tripping

Symptoms: Motor overheating and abnormal current.

Causes: Excessive load (e.g., impeller jamming), unstable voltage.

Solutions: Reduce load, eliminate mechanical blockages, and check the circuit.

Automatic Control System Faults

Symptoms: Inability to control parameters such as liquid level and reagent addition.

Causes: Sensor malfunction (e.g., level gauge, flow meter), PLC program malfunction.

Solutions: Calibrate or replace sensors, restart or repair the control system.

IV. Other Common Problems

Slurry Short Circuit (Overflow)

Causes: Damaged or improperly designed baffles between tanks.

Solutions: Repair baffles and adjust slurry flow direction.

Poor Reagent Performance

Causes: Expired reagents, insufficient stirring.

Solutions: Replace reagents and optimize stirring intensity.
